Window Glass Visual Glazing Safety Marking Strip

Safety Visual Glazing Strip – Windows Glass Safety Marking Decals (DDA Compliant)

Glass Safety Marking Decals are an essential safety solution for modern buildings, designed to prevent accidental collisions by making clear glass doors and panels highly visible. Designed in compliance with AS1428.1-2009 accessibility standards, it provides a minimum 30% luminance contrast and a smooth frosted finish that blends seamlessly with any architectural style.

Visibility strips, also known as safety strips, are a requirement of the National Construction Code (or NCC)

To meet these regulations, the strip must be a minimum 75mm high solid band that extends edge-to-edge of the glazed panel (it cannot stop short of the edges; it must cover the full width). Additionally, it cannot be transparent and the colour must have a minimum 30% luminance contrast to the surrounding environment to ensure that it stands out and can be easily seen. The bottom edge of the safety strip must be positioned between 900mm and 1000mm from the floor. We offer these strips in 75mm and 100mm Width.

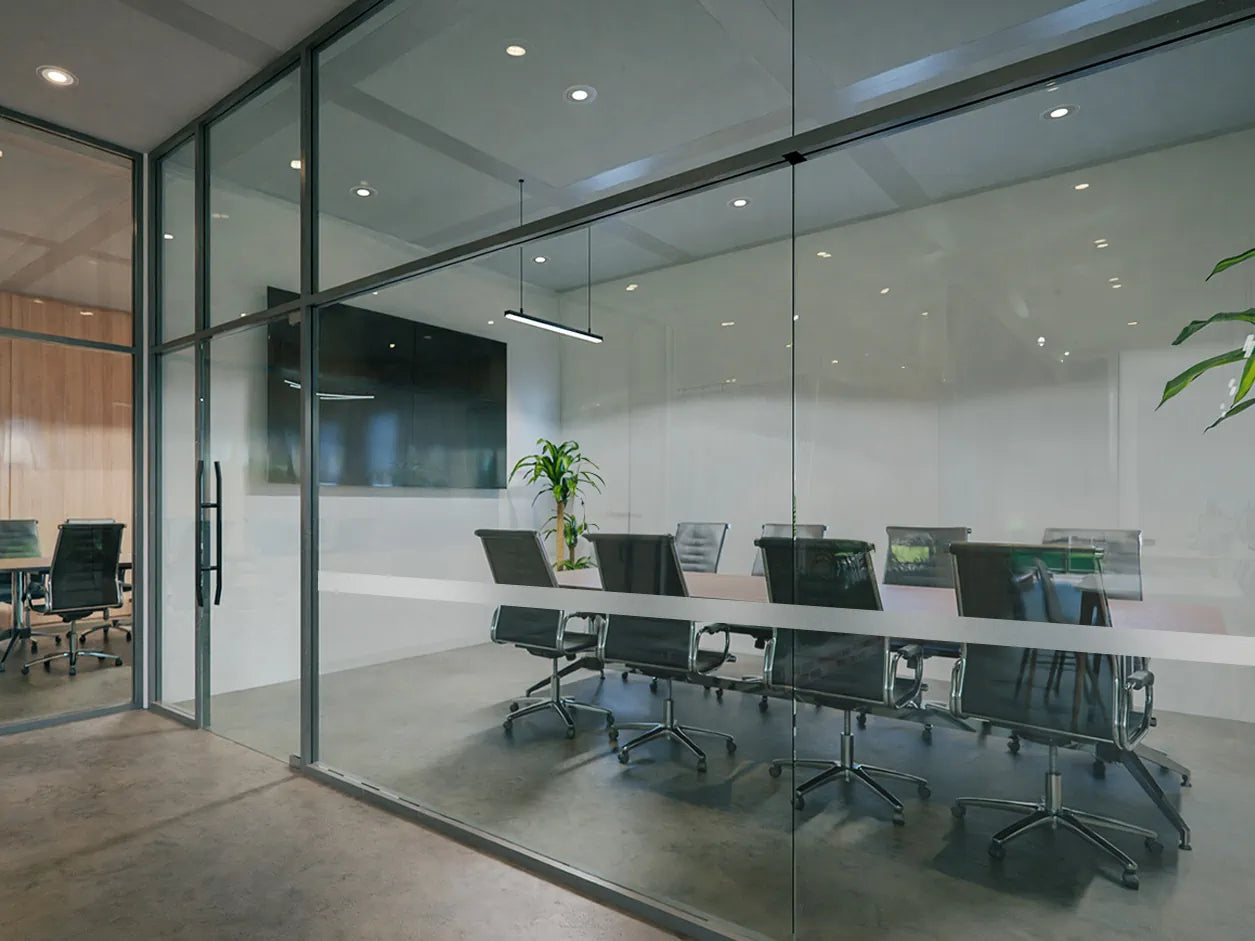

Ideal for offices, retail stores, schools, medical centres, and commercial spaces, these visual glazing strips improve safety while helping you meet Australian compliance requirements

Key Features:

• ✔ DDA Compliant Design – Suitable for compliance with Australian accessibility requirements

• ✔ Improves Glass Visibility – Reduces risk of accidental impact with clear glass panels

• ✔ Roll Sizes - Available in 5m,10m,20m or 50m rolls for flexible installation options.

• ✔ High-Quality Vinyl – Durable, long-lasting, and easy to apply

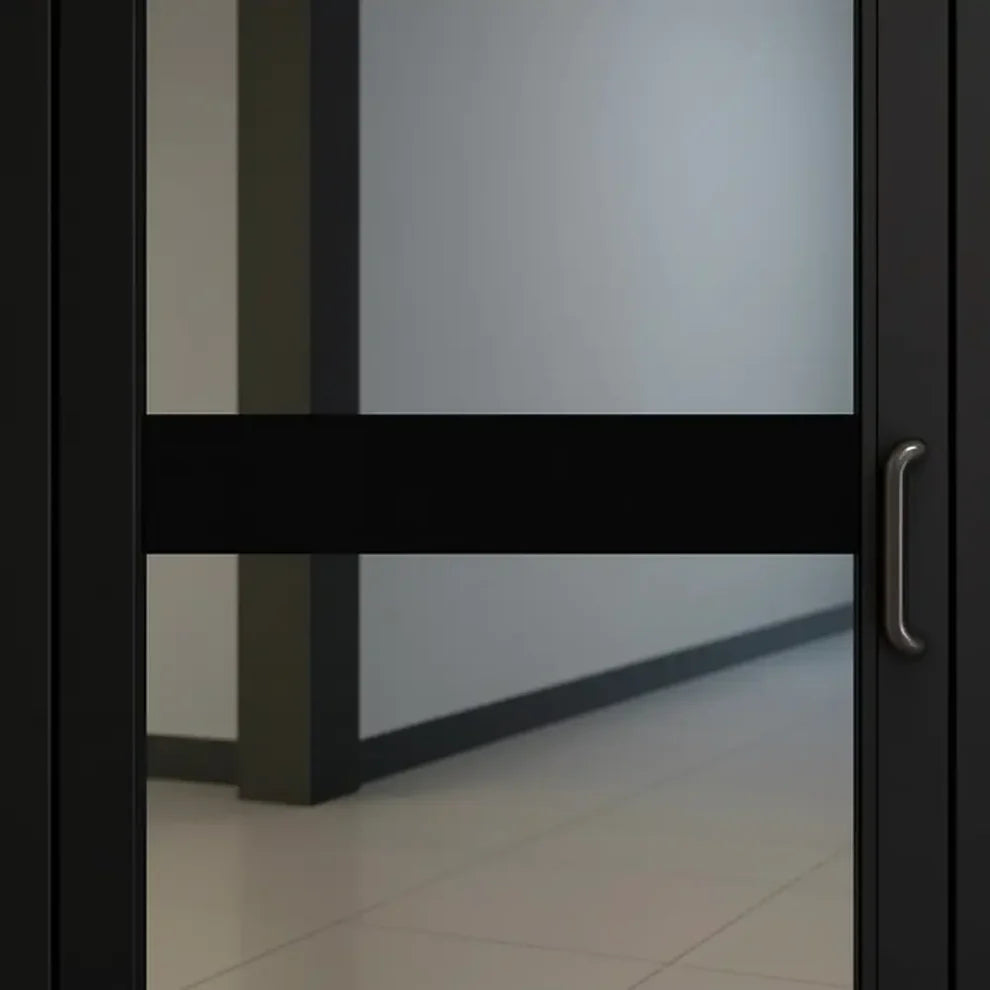

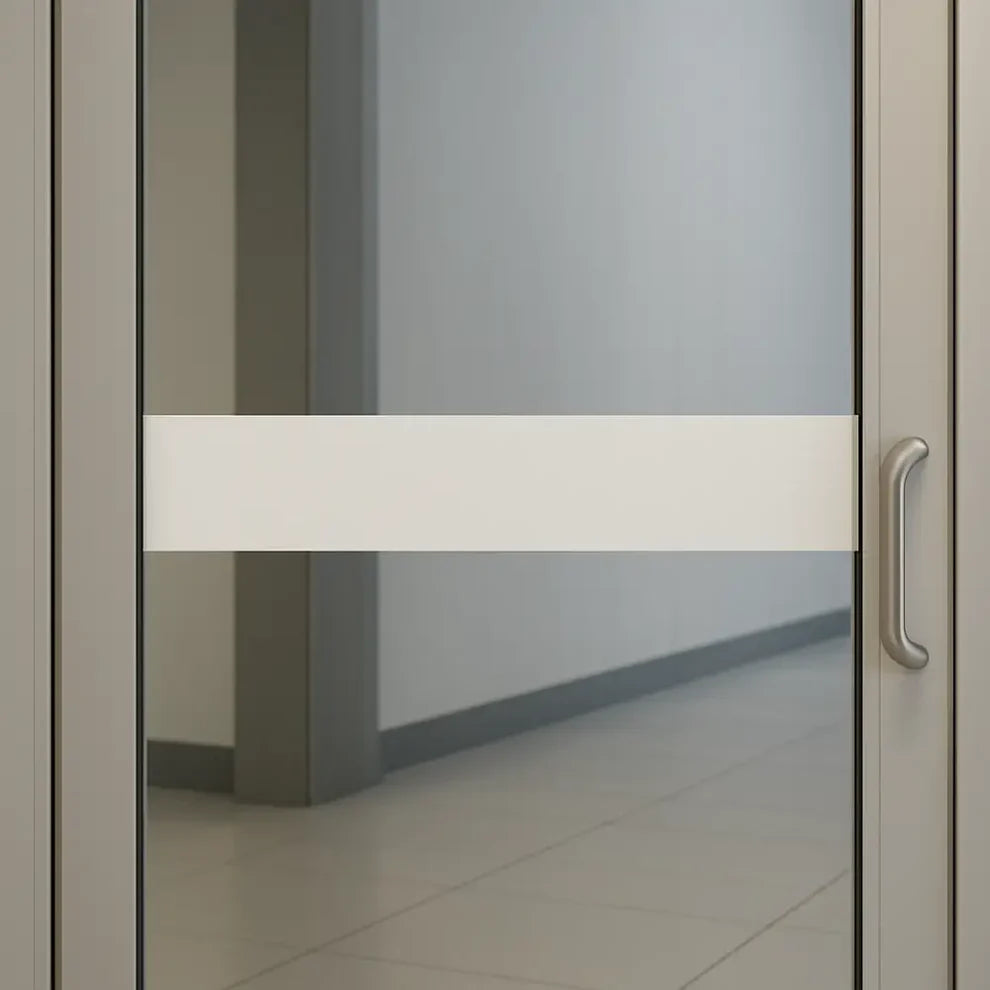

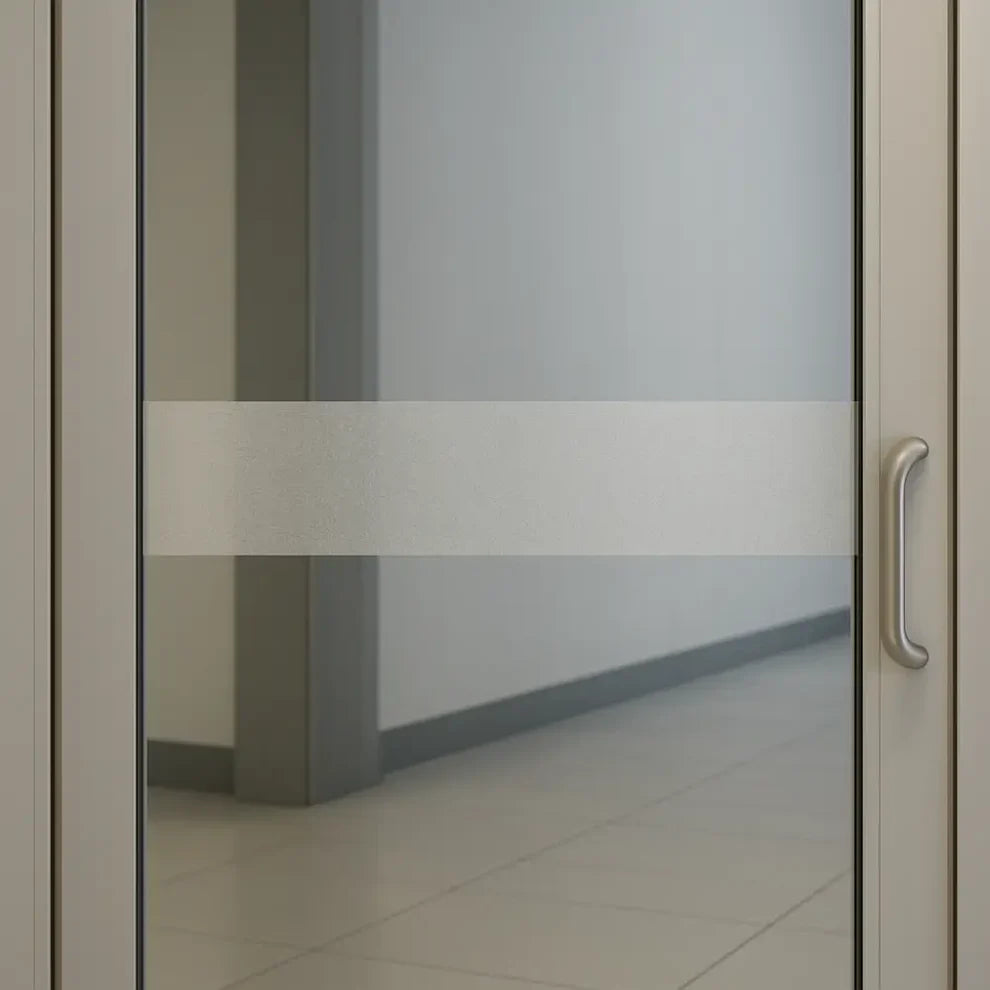

• ✔ Multiple Colours & Finishes – Available in solid, and frosted options

• ✔ Suitable for Internal & External Use

• ✔ Custom Sizes Available – Made to suit your specific glazing dimensions

Applications:

• Office fit-outs

• Retail shopfronts

• Schools & universities

• Hospitals & medical centres

• Commercial buildings

• Public spaces

Visual glazing strips must be installed as follows:

1. Clean glass thoroughly with cleaning products before commencing installation.

2. Measure the glass panel width (edge to edge) and cut the visual glazing strip to size.

3. Measure 1000mm high from the ground and mark the glass panel on
each edge with a non-permanent marker or use a small piece of masking
tape.

4. Thoroughly spray the area including above and below where the
visual glazing strip is to be installed using a spray bottle with soapy
water (dishwashing liquid is highly recommended).

5. Remove the backing seal from the visual glazing strip and apply on
to the glass. Adjust if required before the soapy water dries up.

6. Use a rubber window squeegee (light application) to remove any
excess soapy water whilst holding the visual glazing strip in position.
Wipe any excess soapy water from the glass.

Whether you're installing new glazing or upgrading existing glass panels, our Safety Visual Glazing Strips offer a practical, cost-effective solution that enhances safety while maintaining a professional appearance.

⚠ Always consult your building surveyor or certifier to confirm specific compliance requirements for your project.
